3"x48"x96" Upright Frame for SK3000 Structural Rack
Shipping & Delivery
Shipping & Delivery
Shipping calculated at checkout. All truck and parcel shipments are packaged for safe and efficient delivery of materials; learn more.

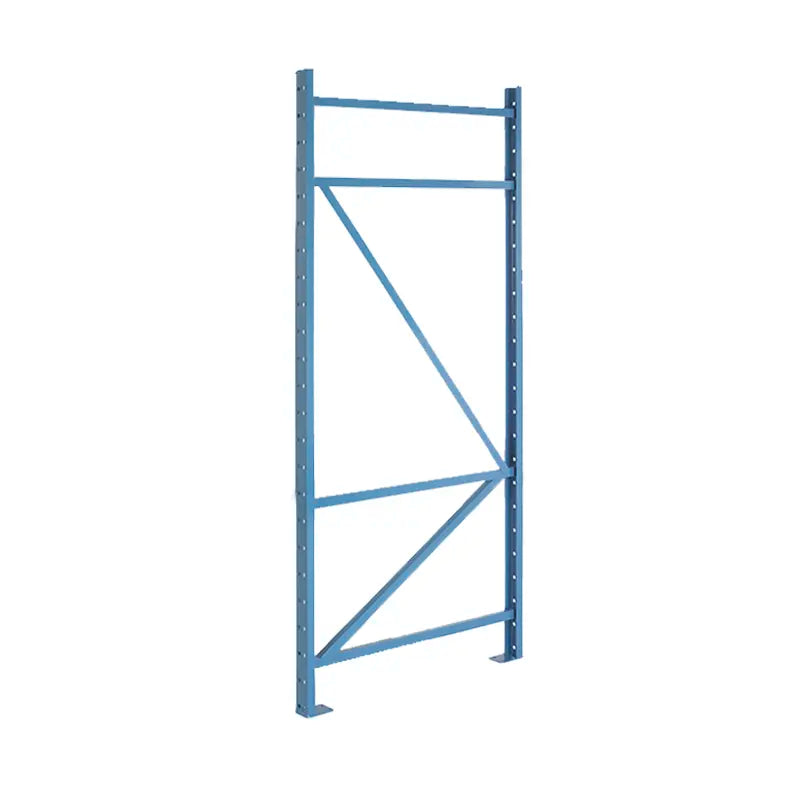

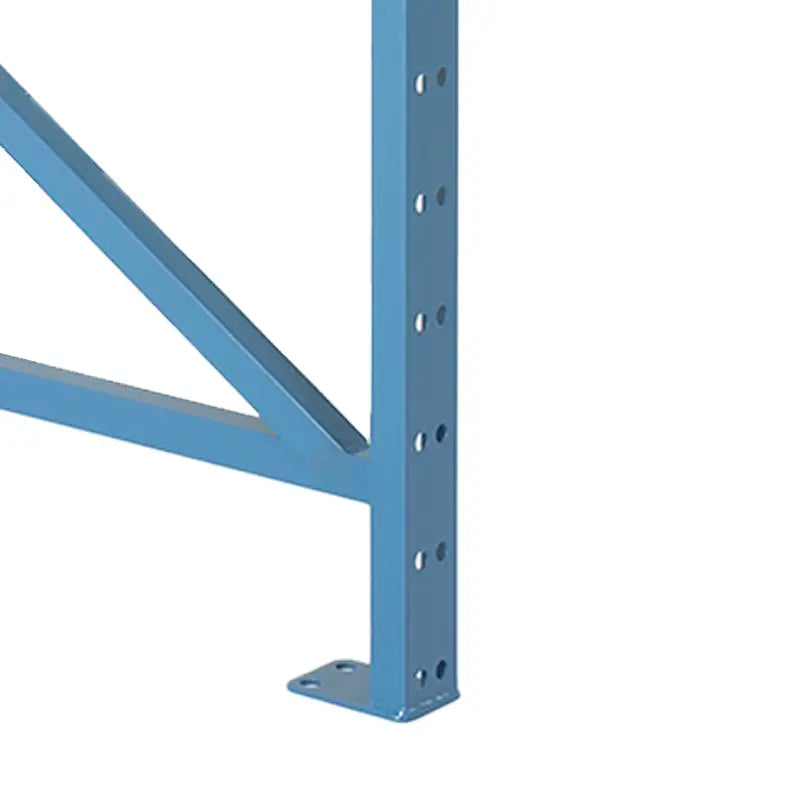

RP-BCF3L048096F03PB is a USA-made 3" x 48" x 96" steel upright frame in our SK3000 Series structural pallet racking that has a max capacity* of 39,990 lbs. and is manufactured to the highest standards. Top to bottom, the strength of the SK3000 lineup is evident and time proven across the country. This structural rack frame features standard footpads made of 7 gauge steel plates that are securely welded to each column to efficiently disperse floor loads. Column-to-beam connections (beams sold separately) are made with heavy 7 gauge wrap-around steel connector plates that help square the rack for a tighter and secure connection. Using two bolts per beam provides 57% more strength than single bolt designs. Grade 5 hardware provides greater shear strength for your system (concrete anchors sold separately or typically provided by customer). The bolted connections are designed to exceed RMI standards. An appealing powder coat in our standard Precaution Blue color not only makes the racking appealing but it also more durable against damage, and more resistant to chemicals and scratches compared to liquid paint coatings.
Strong and durable, even under the most demanding conditions, the Steel King SK3000 structural storage rack is made to last. With greater overall strength and rigidity from C-channel structural steel, it delivers a longer service life, lower maintenance costs, and improved safety, making it the best value in structural pallet racks available.
-
Series
-
Size Summary
-
Capacity*
-
Connection Type
-
Width (in.)
-
Depth (in.)
-
Height (in.)
-
Finish Method
-
Color
-
Material
-
Construction
-
Compliance
-
Beam Adjustment
- SK3000 Assembly Manual
- Pallet Rack User & Safety Manual
- SK3000 Product Overview Brochure
- SK3000 Capacity Charts
- SK3000 Test Report Frontal Resistance
- SK3000 Test Report Horizontal Braces
- Warranty
*Notes to Upright Capacities:
- Capacity is based on 36" vertical beam spacing; larger spacing will decrease capacity.
- Capacities based upon interior usage.
- Capacities are for selective rack only.
- Capacities are for non-seismic usage; contact us for seismic requirements.
- All columns and posts must be properly anchored (anchors sold separately) to an adequate concrete floor (required by RMI code)
- Capacities based upon plumb and proper installation.
- Capacities are total per upright, assuming equal loading on both posts.
- For any outdoor storage, stainless steel anchors are required.
If any of these conditions do not apply to your application, or you are unsure, do not use these capacities and consult our engineering department to ensure proper specification and application requirements are met. A permit and/or stamped calculations may also be required by your local building department prior to installation and is the responsibility of the end user. Contact us for any seismic location requirements prior to ordering.
